Configure cluster mode

Use cluster mode to distribute licenses across LSF clusters, leaving the scheduler for each LSF cluster to schedule jobs, allocate licenses to projects within the cluster, and preempt jobs.

Configure parameters

Procedure

Cluster mode can be set globally, or for individual license features. Set individually when using cluster mode for some features and project mode for some features.
1. If you are using cluster mode for all license features, define CLUSTER_MODE=Y in the Parameters section of lsf.licensescheduler.
2. If you are using cluster mode for some license features, define CLUSTER_MODE=Y for individual license features in the Feature section of lsf.licensescheduler.
  The Feature section setting of CLUSTER_MODE overrides the global Parameter section setting.
List the License Scheduler hosts.
By default with an LSF installation, the HOSTS parameter is set to the LSF_MASTER_LIST.
- List the hosts in order from most preferred to least preferred. The first host is the master license scheduler host.
- Specify a fully qualified host name such as hostX.mycompany.com unless all your License Scheduler clients run in the same DNS domain.
HOSTS=host1 host2
Specify the data collection frequency between License Scheduler and FlexNet.
The default is 60 seconds.

LM_STAT_INTERVAL=seconds
Specify the path to the FlexNet command lmstat.
For example, if lmstat is in /etc/flexlm/bin:
```
LMSTAT_PATH=/etc/flexlm/bin
```

Configure clusters

About this task

Configure the clusters that are permitted to use License Scheduler in the Clusters section of the lsf.licensescheduler file.

Configuring the clusters is only required if you are using more than one cluster.

Procedure

In the Clusters section, list all clusters that can use License Scheduler.

For example:

Begin Clusters

CLUSTERS

cluster1

cluster2

End Clusters

Cluster mode service domains

A service domain is a group of one or more FlexNet license servers. License Scheduler manages the scheduling of the license tokens, but the license server actually supplies the licenses.

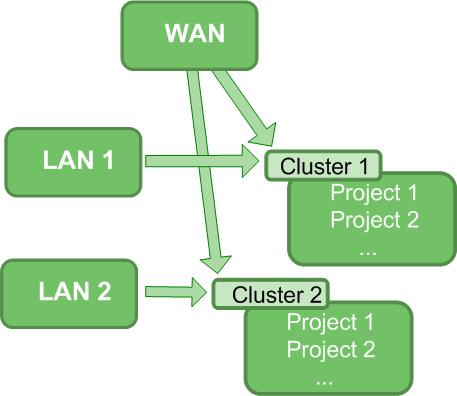

In cluster mode, each cluster can access licenses from one WAN and one LAN service domain.

License Scheduler does not control application checkout behavior. If the same license is available from both the LAN and WAN service domains, License Scheduler expects jobs to try to obtain the license from the LAN first.

Configure ServiceDomain sections

About this task

You configure each service domain, with the license server names and port numbers that serve licenses to a network, in the ServiceDomain section of the lsf.licensescheduler file.

Whether the service domain is a WAN or LAN service domain is specified later in the Feature section.

Procedure

Add a ServiceDomain section, and define NAME for each service domain.
For example:
```
Begin ServiceDomain
NAME=DesignCenterA
End ServiceDomain
```
Specify the FlexNet license server hosts for that domain, including the host name and FlexNet port number.
For example:
```
Begin ServiceDomain
NAME=DesignCenterA
LIC_SERVERS=((1700@hostA))
End ServiceDomain
```
For multiple license servers:
```
LIC_SERVERS=((1700@hostA)(1700@hostB))
```
For redundant servers, the parentheses are used to group the three hosts that share the same license.dat file:

LIC_SERVERS=((1700@hostD 1700@hostE 1700@hostF))

Note:
If FlexNet uses a port from the default range, you can specify the host name without the port number. See the FlexNet documentation for the values of the default port range.

LIC_SERVERS=((@hostA))

Configure remote FlexNet license server hosts

Before you begin

The remote FlexNet license server hosts must have lmutil (or lmstat) in the LMSTAT_PATH directory before configuring these hosts with License Scheduler.

About this task

The license collector (blcollect) is a multi-threaded daemon that queries all FlexNet license servers under License Scheduler for license usage information. The license collector calls lmutil (or lmstat) to collect information from each license server. When there are both local and remote license servers (that is, license servers that are in a different subnet from the host running blcollect), the threads that collect information from the remote license servers are slower than the threads that collect information from local license servers.

If there are remote license servers, designate at least one remote license server within each domain as a remote agent host. The license collector connects to the remote agent host and calls lmstat on the remote agent host and gets license information from all license servers that the remote agent host serves. The remote agent host and the remote license servers should be in the same domain to improve access.

Procedure

Select the connection method for the license collector to connect to remote hosts.
License Scheduler supports the use of ssh, rsh, and lsrun to connect to remote hosts. If using lsrun as the connection method, the agent host must be a server host in the LSF cluster and RES must be started on this host. Otherwise, if using ssh or rsh as the connection method, the agent host does not have to be a server host in the LSF cluster.
1. In the Parameters section, define the REMOTE_LMSTAT_PROTOCOL parameter and specify the connection command (and command options, if required) to connect to remote servers.
  REMOTE_LMSTAT_PROTOCOL=ssh [ssh_command_options] | rsh [rsh_command_options] | lsrun [lsrun_command_options]

  The default connection method is ssh with no command options. License Scheduler uses the specified command (and optional command options) to connect to the agent host. License Scheduler automatically appends the name of the agent host to the command, so there is no need to specify the host with the command.

  Note: License Scheduler does not validate the specified command, so you must ensure that you correctly specify the command. Any connection errors are noted in the blcollect log file.
2. If the connection method is ssh or rsh, verify that this connection method is configured so the host running the license collector can connect to remote hosts without specifying a password.
Define remote license servers and remote agent hosts.
In the ServiceDomain section, define the REMOTE_LMSTAT_SERVERS parameter:

REMOTE_LMSTAT_SERVERS=host_name[(host_name ...)] [host_name[(host_name ...)] ...]

Specify a remote agent host, then any license servers that it serves in parentheses. The remote agent host and the license servers that it serves must be in the same subnet. If you specify a remote agent host by itself without any license servers (for example, REMOTE_LMSTAT_SERVERS=hostA), the remote agent host is considered to be a remote license server with itself as the remote agent host. That is, the license collector connects to the remote agent host and only gets license information on the remote agent host. You can specify multiple remote agent hosts to serve multiple subnets, or multiple remote agent hosts to serve specific license servers within the same subnet.

Any host that you specify here must be a license server defined in LIC_SERVERS. Any hosts defined in REMOTE_LMSTAT_SERVERS that are not also defined in LIC_SERVERS are ignored.

The following examples assume that the license collector (blcollect) is running on LShost1. That is, the following parameter is specified in the Parameters section:
```
Begin Parameters
...
HOSTS=LShost1
...
End Parameters
```
- One local license server (hostA) and one remote license server (hostB):
```
LIC_SERVERS=((1700@hostA)(1700@hostB))
REMOTE_LMSTAT_SERVERS=hostB
```
  - The license collector runs lmutil (or lmstat) directly on hostA to get license information on hostA.
  - Because hostB is defined without additional license servers, hostB is a remote agent host that only serves itself. The license collector connects to _hostB (using the command specified by the REMOTE_LMSTAT_PROTOCOL parameter) and runs lmstat to get license information on 1700@hostB.
- One local license server (hostA), one remote agent host (hostB) that serves one remote license server (hostC), and one remote agent host (hostD) that serves two remote license servers (hostE and hostF):
```
LIC_SERVERS=((1700@hostA)(1700@hostB)(1700@hostC)(1700@hostD)(1700@hostE)(1700@hostF))
REMOTE_LMSTAT_SERVERS=hostB(hostC) hostD(hostE hostF)
```
  - The license collector runs lmutil (or lmstat) directly to get license information from 1700@hostA, 1700@hostB, and 1700@hostD.
  - The license collector connects to hostB (using the command specified by the REMOTE_LMSTAT_PROTOCOL parameter) and runs lmstat to get license information on 1700@hostC.
    hostB and hostC should be in the same subnet to improve access.
  - The license collector connects to hostD (using the command specified by the REMOTE_LMSTAT_PROTOCOL parameter) and runs lmutil (or lmstat) to get license information on 1700@hostE and 1700@hostF.
    hostD, hostE, and hostF should be in the same subnet to improve access.
- One local license server (hostA), one remote license server (hostB), and one remote agent host (hostC) that serves two remote license servers (hostD and hostE):
```
LIC_SERVERS=((1700@hostA)(1700@hostB)(1700@hostC)(1700@hostD)(1700@hostE))
REMOTE_LMSTAT_SERVERS=hostB hostC(hostD hostE)
```
  - The license collector runs lmutil (or lmstat) directly to get license information on 1700@hostA and 1700@hostC.
  - The license collector connects to hostB (using the command specified by the REMOTE_LMSTAT_PROTOCOL parameter) and runs lmstat to get license information on 1700@hostB.
  - The license collector connects to hostC (using the command specified by the REMOTE_LMSTAT_PROTOCOL parameter) and runs lmstat to get license information on 1700@hostD and 1700@hostE.
    hostC, hostD, and hostE should be in the same subnet to improve access.

Configure LAN service domain

About this task

You configure LAN service domains in the Feature section of lsf.licensescheduler. Only a single cluster and service domain can be specified in each LAN Feature section. Licenses from the LAN service domain are statically allocated to the cluster.

Procedure

In the Feature section, set

CLUSTER_DISTRIBUTION=service_domain(cluster_name share)

Use the service domain name that is defined in the ServiceDomain section.

For example:

Begin Feature
NAME=verilog
CLUSTER_DISTRIBUTION=MyLanServer(tokyo_cluster 1)
End Feature

Configure WAN service domain

About this task

WAN configuration includes all clusters that are sharing the WAN service domain. As for a LAN service domain, you set this configuration in the CLUSTER_DISTRIBUTION parameter in the Feature section of the lsf.licensescheduler file.

For a WAN service domain, you can optionally configure dynamic license sharing based on past license use across all clusters that are served by the WAN service domain, and if required set minimum and maximum allocations for each cluster.

Procedure

Set the WAN service domain name in the CLUSTER_DISTRIBUTION parameter.
```
CLUSTER_DISTRIBUTION = service_domain(cluster share/min/max...)
```
Use the service domain name that is defined in the ServiceDomain section.
Configure each cluster.
All clusters with access to the WAN service domain licenses must be included.
1. Set the cluster name.
2. Set the share for each cluster.
  The share is a non-negative integer representing the share of licenses each cluster receives in a static license allocation, and the starting share in a dynamic license allocation.
Optionally, set ALLOC_BUFFER in the Feature section of the lsf.licensescheduler file. When set, this parameter enables a dynamic sharing policy.
```
ALLOC_BUFFER = buffer
```
or
```
ALLOC_BUFFER = cluster1 buffer1 cluster2 buffer2...default buffer
```
- When extra license tokens are available, each cluster’s allocation increases to as much as PEAK+BUFFER.

  The value BUFFER is set by ALLOC_BUFFER in the Feature section, and the value PEAK is the peak value of dynamic license token use over a time interval that is set by PEAK_INUSE_PERIOD in the Parameters or Feature section.
- When allocated tokens are not being use in a cluster, the cluster’s allocation goes down to PEAK+BUFFER.

  Since tokens are not being used in the cluster, the peak use value PEAK decreases, thus PEAK+BUFFER also decreases.
The allocation buffer sets both the rate at which the cluster allocation can grow, and the number of licenses that can go unused, depending on demand.

Allocation buffers help determine the maximum rate at which tokens can be transferred to a cluster as demand increases in the cluster. The maximum rate of transfer to a cluster is given by the allocation buffer that is divided by MBD_REFRESH_INTERVAL. Be careful not to set the allocation buffer too large so that licenses are not wasted because they are allocated to a cluster that cannot use them.
Optionally, when dynamic sharing is enabled (ALLOC_BUFFER is defined) you can set the minimum and maximum allocation for each cluster.
The minimum allocation reserves license tokens for exclusive use by the cluster; the maximum allocation limits the total number of license tokens that are received by the cluster.

Cluster shares take precedence over minimum allocations configured. If the minimum allocation exceeds the cluster's share of the total tokens, a cluster's allocation as given by bld may be less than the configured minimum allocation.

Results

To allow a cluster to be able to use licenses only when another cluster does not need them, you can set the cluster distribution for the cluster to 0, and specify an allocation buffer for the number of tokens that the cluster can request.

For example:

Begin Feature
CLUSTER_DISTRIBUTION=Wan(CL1 0 CL2 1)
ALLOC_BUFFER=5
End Feature

When no jobs are running, the token allocation for CL1 is five. If CL2 does not require the tokens, CL1 can get more than five.

Examples

Static example (no allocation buffer set):

Begin Feature
NAME=verilog
CLUSTER_DISTRIBUTION=MyWanServer(tokyo_cl 1 newyork_cl 1 toronto_cl 2)
End Feature

In this example, licenses are statically allocated based solely on the number of shares that are assigned to each cluster. If the number of licenses is not evenly divisible by the number of shares, the additional licenses are distributed round-robin to clusters in the specified order in CLUSTER_DISTRIBUTION. Thus if there are 98 licenses in total, tokyo_cl receives 25, newyork_cl receives 25, and toronto_cl receives 48. Each cluster limits the total rusage of running jobs that are based on the allocated license tokens.

Dynamic example (allocation buffer set):

Begin Feature
NAME=verilog
CLUSTER_DISTRIBUTION=MyWanServer(tokyo_cl 1 newyork_cl 1 toronto_cl 2/10/50)
ALLOC_BUFFER=tokyo_cl 5 newyork_cl 1 toronto_cl 2
End Feature

In this example, licenses are initially distributed according to the assigned shares. Since allocation buffers are set, dynamic sharing that is based on past use is enabled. Based on the allocation buffers, toyko_cl receives license tokens the fastest when there is demand within the cluster. Minimum and maximum allocations of 10 and 50 are set for toronto_cl, which also has the largest share.

LAN and dynamic WAN example:

Begin Feature
NAME=verilog
CLUSTER_DISTRIBUTION=MyWan(c1 1/1/25 c2 1/1/30 c3 2/5/100) MyLan(c1 1)
ALLOC_BUFFER=c3 5 default 2
End Feature

In this example, the verilog license feature is available from both WAN and LAN service domain, however only cluster c1 receives the license feature from both servers. Licenses from the WAN service domain are initially distributed according to the assigned shares. Since allocation buffers are set, dynamic sharing that is based on past use is enabled. Based on the allocation buffers cluster c3 receives license tokens the fastest when there is demand within the cluster.

Configure license features

About this task

Each type of license requires a Feature section in the lsf.licensescheduler file.

Procedure

Define the feature name that is used by FlexNet to identify the type of license by using the NAME parameter.
Optionally, define an alias between License Scheduler and FlexNet feature names by using the FLEX_NET parameter to specify the FlexNet feature name and the NAME parameter to define the License Scheduler alias.

You only need to specify FLEX_NAME if the License Scheduler token name is not identical to the FlexNet feature name, or for FlexNet feature names that either start with a number or contain a hyphen character (-), which are not supported in LSF.

If the FlexNet feature name is AppZ201 and you intend to use this same name as the License Scheduler token name, define the NAME parameter as follows:
```
Begin Feature
NAME=AppZ201
End Feature
```
If the FlexNet feature name 201-AppZ, this is not supported in LSF because the feature name starts with a number and contains a hyphen. Therefore, define AppZ201 as an alias of the 201-AppZ FlexNet feature name as follows:
```
Begin Feature
NAME=AppZ201
FLEX_NAME=201-AppZ
End Feature
```
Optionally, combine multiple interchangeable FlexNet features into one License Scheduler alias by specifying multiple FlexNet feature names in FLEX_NAME as a space-delimited list.
In this example, two FlexNet features named 201-AppZ and 202-AppZ are combined into an alias named AppZ201.
```
Begin Feature
NAME=AppZ201
FLEX_NAME=201-AppZ 202-AppZ
End Feature
```
AppZ201 is a combined feature that uses both 201-AppZ and 202-AppZ tokens. Submitting a job with AppZ201 in the rusage string (for example, bsub -Lp Lp1 -R "rusage[AppZ201=2]" myjob) means that the job checks out tokens for either 201-AppZ or 202-AppZ.

Configure taskman jobs in cluster mode

About this task

Optionally, to run taskman (interactive) jobs in cluster mode, include the dummy cluster interactive in your service domain configuration.

Procedure

In the Feature section:

Include the dummy cluster interactive in the CLUSTER_DISTRIBUTION parameter.
Set a share for the dummy cluster interactive.
Optionally, set an allocation buffer for the dummy cluster interactive to enable dynamic allocation.

Examples

Begin Feature
NAME=licenseA
CLUSTER_DISTRIBUTION=MyLanServer(tokyo_cl 1 interactive 1)
End Feature

Begin Feature
NAME=licenseB
CLUSTER_DISTRIBUTION=MyWanServer(tokyo_cl 1 newyork_cl 1 interactive 2)
End Feature

Allocate licenses to non-LSF jobs

About this task

Applies to WAN service domains only.

Procedure

Set WORKLOAD_DISTRIBUTION in the Feature section to allocate licenses for non-LSF use.

WORKLOAD_DISTRIBUTION=service_domain_name(LSF lsf_distribution NON_LSF non_lsf_distribution)

If WORKLOAD_DISTRIBUTION is set for a LAN service domain in cluster mode, the parameter is ignored.

Example

For example, to set aside 20% of licenses for use outside of LSF:

Begin Feature
NAME=licenseB
CLUSTER_DISTRIBUTION=MyWanServer(tokyo_cl 1 newyork_cl 1)
WORKLOAD_DISTRIBUTION=MyWanServer(LSF 8 NON_LSF 2)
End Feature

Restart to implement configuration changes

Procedure

Run bladmin reconfig to restart the bld.
If you deleted any Feature sections, restart mbatchd. In this case, a message is written to the log file, prompting the restart.
If required, run badmin mbdrestart to restart each LSF cluster.

View license allocation

Procedure

Run blstat -t token_name to view information for a specific license token (as configured in a Feature section).

blstat output differs for cluster mode and project mode.
